Secukey CH3-WIFI Slim Keypad Access Control, ABS (Tuya Wi-Fi)

Overview

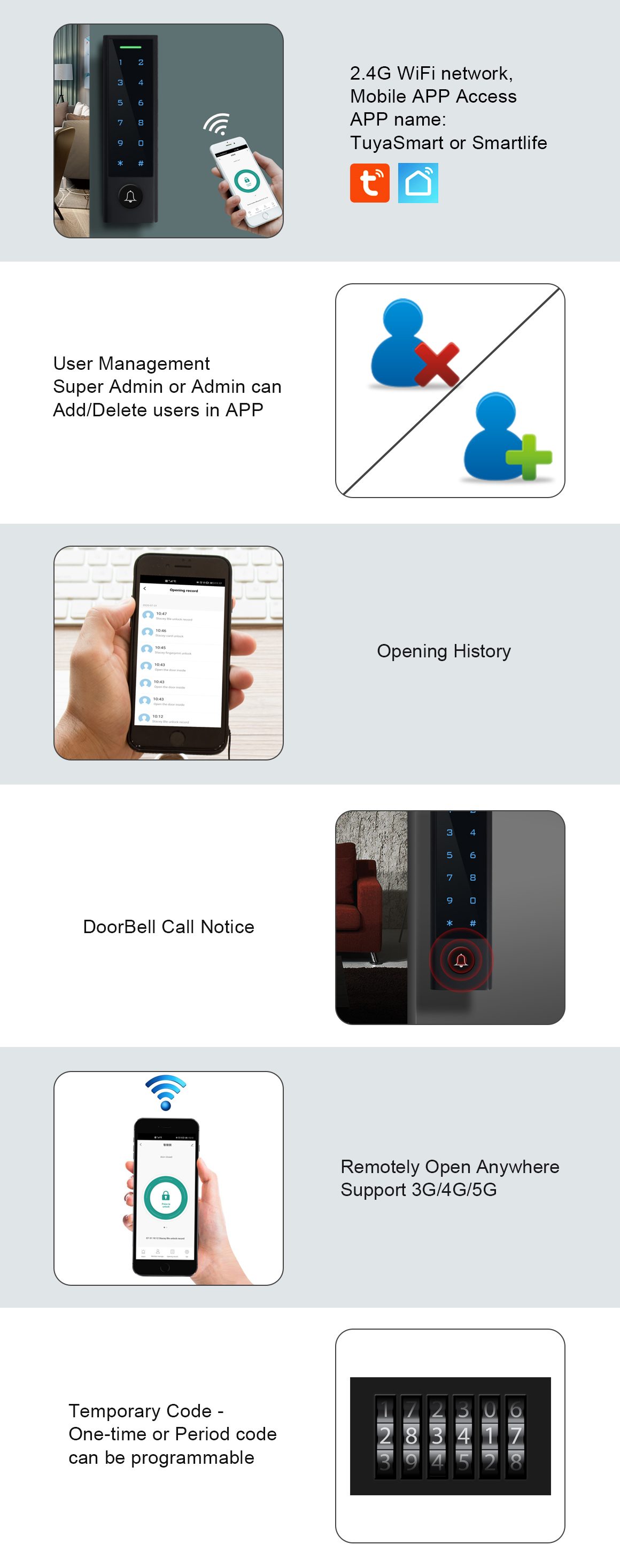

The Secukey CH3-WIFI Slim Keypad Access Control, ABS (Tuya Wi-Fi) is a value-priced access control from Secukey, available at Centrix Kuwait with full manufacturer warranty. The Secukey CH3-WIFI is a slim Wi-Fi touch keypad and card reader in a black ABS (plastic) housing. It controls one door. People open the door with a PIN code, an access card or the Tuya app on their phone (iOS and Android). It is rated IP66. The plastic case makes it the lowest-cost keypad in this range; for a door that may be knocked or tampered with, choose a metal model such as the H7-WIFI. The app lets you add or delete users, give each user set times, send a visitor a one-time or time-limited code, and check the opening record. You can also open the door from your phone when you are away, over mobile data. It holds 1,000 local users (988 PIN/card users, 10 visitor users and 2 panic users) plus 500 app users. Card version: the CH3-WIFI is made in an EM (125 kHz) version and a dual EM + MIFARE version. The MIFARE version reads MIFARE, MIFARE Plus, DESFire, MIFARE Pro, MIFARE Ultralight, MIFARE Classic 4K, NFC and CPU cards (4- and 7-byte). Tell us which cards you use when you order. What else you need: this unit is the reader and controller only. A working door also needs an electric lock (a magnetic lock or an electric strike), a 12 V door power supply, an exit button on the inside, and installation. Centrix can supply and install the complete door set. Fire safety: on an escape route the door must open when power is lost or the fire alarm goes off. Use a fail-safe magnetic lock wired to the fire alarm panel. Order on demand from Centrix Kuwait; delivery quoted on order. Priced at 12 KWD, supplied from local Kuwait stock with same-week delivery and bilingual technical support.

What the Specs Mean

What's In The Box

• ✓1x Secukey CH3-WIFI Slim Keypad Access Control, ABS (Tuya Wi-Fi)
• ✓1x Quick installation guide
