UbiquitiSKU: UA-Hub-Door-MiniUbiquiti UniFi Access Door Hub Mini (UA-Hub-Door-Mini)
Compact one-door hub for UniFi Access. Powers 2 readers over PoE, drives the lock, exit and door inputs.
Key Features
- Controls one door in UniFi Access
- Powers up to 2 UniFi readers over PoE
- Runs from a single PoE++ cable
- Powers a 12 V lock up to 1 A, or switches a lock with its own supply
- Exit button and door position sensor inputs
Need a quote or bulk pricing? Contact us
Overview

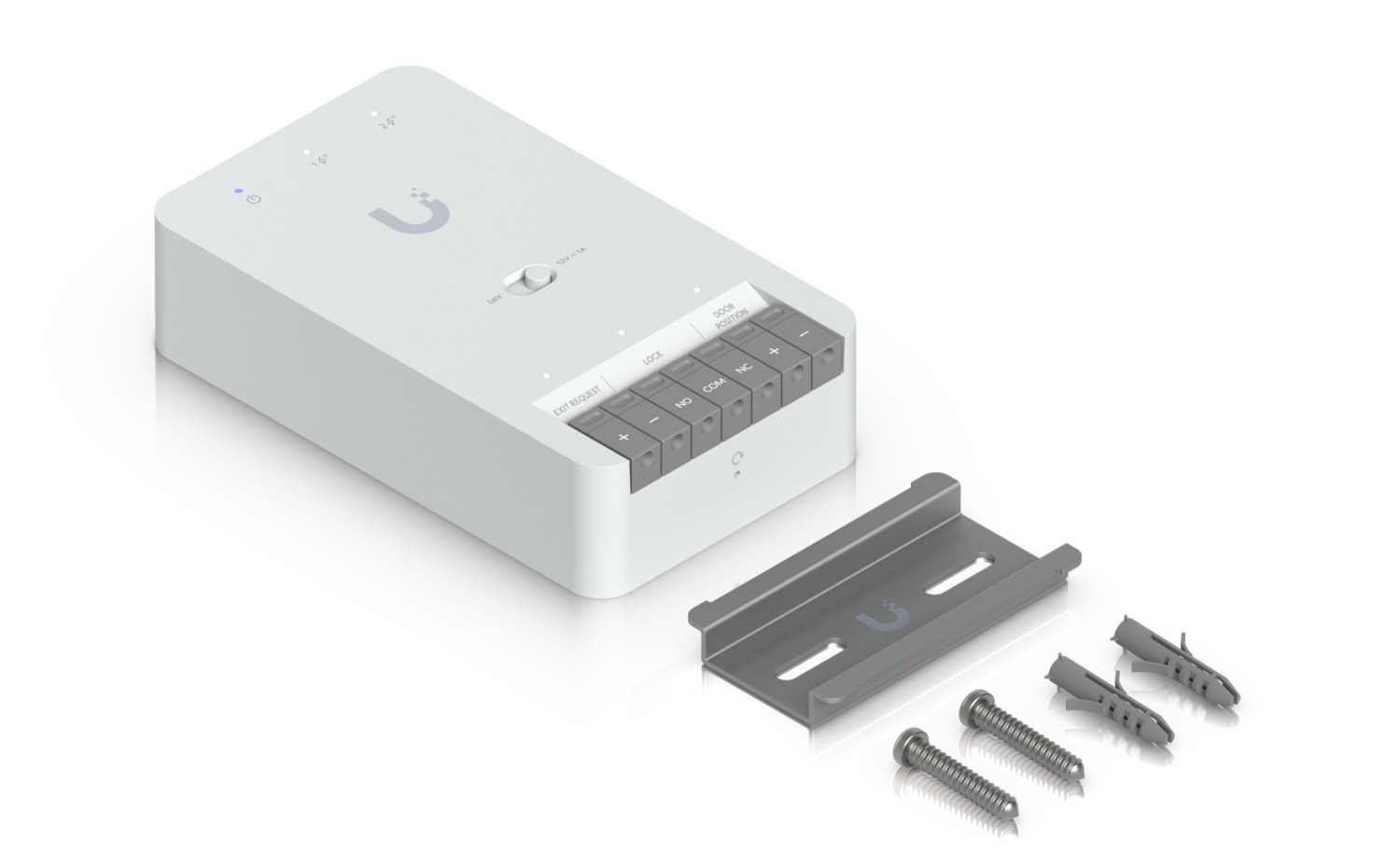

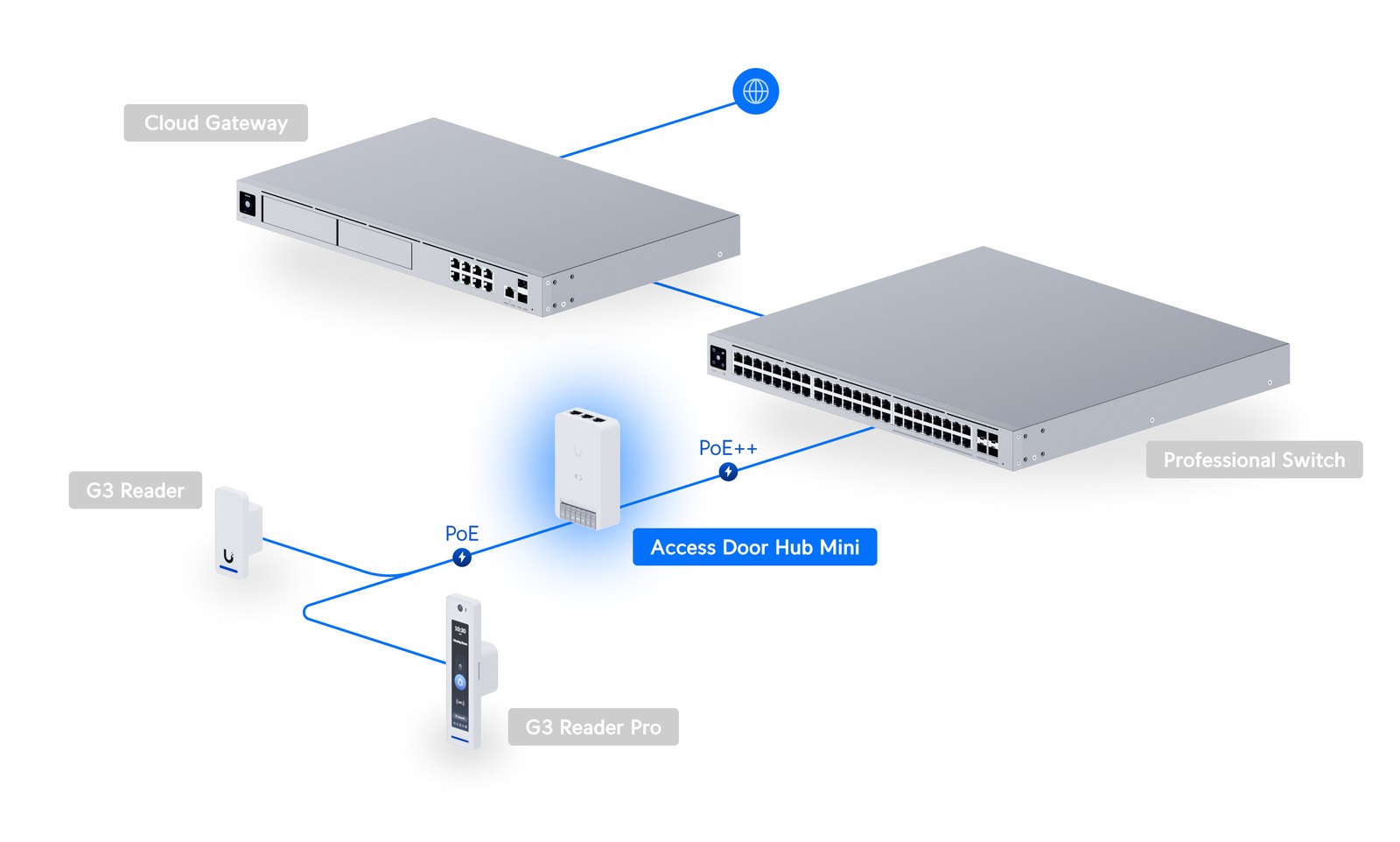

The Ubiquiti UniFi Access Door Hub Mini (UA-Hub-Door-Mini) is a value-priced access control from Ubiquiti, available at Centrix Kuwait with full manufacturer warranty. The Door Hub Mini is the controller for one door in a UniFi Access system. It sits on the secure side of the door, usually above the frame or in a small cabinet, and clips onto the DIN rail that comes in the box. It is for indoor use. The hub takes one PoE++ network cable from your switch. It passes power and data on to up to two UniFi readers through its two PoE+ outputs, for example a reader outside and an exit reader inside. When a reader accepts a card, phone or Wallet pass, the hub checks it against the people and schedules you set in UniFi Access and releases the lock. It has an input for an exit button and an input for a door position sensor, so UniFi Access can show whether the door is open or closed and flag a door that is opened without a valid unlock. The lock relay can be set to wet or dry with a switch. In wet mode the hub powers a 12 V lock drawing up to 1 A, such as UniFi's own magnetic and strike locks. In dry mode it switches a lock that has its own power supply, up to 30 V DC 1 A. What else you need: a UniFi console running UniFi Access (for example the Dream Machine Pro or Cloud Key Gen2 Plus), a PoE++ switch port or injector, one or two UniFi Access readers (such as the G3 Reader), an electric lock, an exit button, a door position sensor if you want open/closed alerts, cabling and installation. If you need the hub, reader and key fobs together, the G3 Starter Kit includes this hub. Ubiquiti does not charge a licence fee for UniFi Access. Centrix supplies and installs the complete door. Fire safety: on an escape route the lock must release when power is lost or the fire alarm goes off. The Door Hub Mini has no fire-alarm input, so use a fail-safe lock and have the fire alarm cut the lock's power. If you want the hub itself to react to the fire panel, use the full-size Door Hub, which has an emergency input. Price on request. Call or WhatsApp Centrix in Hawally for a quote. Priced at 0 KWD, supplied from local Kuwait stock with same-week delivery and bilingual technical support.
Who It's For
Ideal for: network professionals and system integrators; enterprise IT departments; UniFi ecosystem users who want centralized management. Available in Kuwait from Centrix as genuine Ubiquiti stock from authorised channels.
What the Specs Mean
UA-Hub-Door-Mini — an important specification for this access control that affects performance and capability in your network deployment.
1 ports provide connectivity for devices, uplinks, and network segments. More ports mean fewer additional switches needed in your deployment.
3,000 — an important specification for this access control that affects performance and capability in your network deployment.
UniFi Access application — an important specification for this access control that affects performance and capability in your network deployment.
3 x Gigabit RJ45 — an important specification for this access control that affects performance and capability in your network deployment.
What's In The Box
- ✓1x Ubiquiti UniFi Access Door Hub Mini (UA-Hub-Door-Mini)
- ✓1x Quick start guide
Specifications
| Model | UA-Hub-Door-Mini |
| Doors Supported | 1 |
| Max Users | 3,000 |
| Management | UniFi Access application |
| Network | 3 x Gigabit RJ45 |
| PoE | 1 x PoE++ input (50 V DC, 1 A); 2 x PoE+ outputs, 30 W per port, 45 W total |
| Inputs | Door exit request, door position sensor |
| Wet Lock Relay | 12 V DC, 1 A |
| Dry Lock Relay | 30 V DC, 1 A |
| Buttons | Factory reset; dry/wet relay switch |
| Max Power Consumption | 19 W without PoE output; 50 W with PoE output |
| Use | Indoor only |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 5 to 90% non-condensing |
| Enclosure | Polycarbonate and metal |
| Mounting | DIN rail (included) |
| Dimensions | 113 x 66 x 27.6 mm |
| Weight | 190 g |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| NDAA Compliant | Yes |
Ideal Use Cases
Ideal for: network professionals and system integrators; enterprise IT departments; UniFi ecosystem users who want centralized management. Available in Kuwait from Centrix as genuine Ubiquiti stock from authorised channels.
Frequently Asked Questions
Where can I buy the Ubiquiti UniFi Access Door Hub Mini (UA-Hub-Door-Mini) in Kuwait?
The Ubiquiti UniFi Access Door Hub Mini (UA-Hub-Door-Mini) is available in Kuwait at Centrix (centrixkw.com), sold as genuine Ubiquiti stock from authorised channels. It is currently out of stock but can be pre-ordered. Priced at 0 KWD with free shipping on orders over 150 KD.
Does the Ubiquiti UniFi Access Door Hub Mini (UA-Hub-Door-Mini) support PoE?
Yes, the Ubiquiti UniFi Access Door Hub Mini (UA-Hub-Door-Mini) supports 1 x PoE++ input (50 V DC, 1 A); 2 x PoE+ outputs, 30 W per port, 45 W total. This allows you to power compatible devices like access points, IP cameras, and VoIP phones directly through the Ethernet cable.
What is the main advantage of the Ubiquiti UniFi Access Door Hub Mini (UA-Hub-Door-Mini)?
The standout feature of the Ubiquiti UniFi Access Door Hub Mini (UA-Hub-Door-Mini) is: Controls one door in UniFi Access. Combined with Ubiquiti's build quality and access control expertise, it's a strong choice for professional network deployments.
Does the Ubiquiti UniFi Access Door Hub Mini (UA-Hub-Door-Mini) come with warranty in Kuwait?
Yes, all Ubiquiti products purchased from Centrix come with manufacturer warranty. We also provide technical support for installation and configuration. Contact our team for assistance.
Customer Reviews
No reviews yet. If you own the Ubiquiti UniFi Access Door Hub Mini (UA-Hub-Door-Mini), yours would be the first.
From the manufacturer
Features, wiring and dimensions of the Ubiquiti UniFi Access Door Hub Mini (UA-Hub-Door-Mini), as published by Ubiquiti.
